CF — Clamp Flange

Assets/Details

Performance Data (63 KB, PDF)
  • Can be used as an attachment to flanged equipment (also part of PA and WA).
  • Materials Available: Painted Steel

Ordered Part Includes:

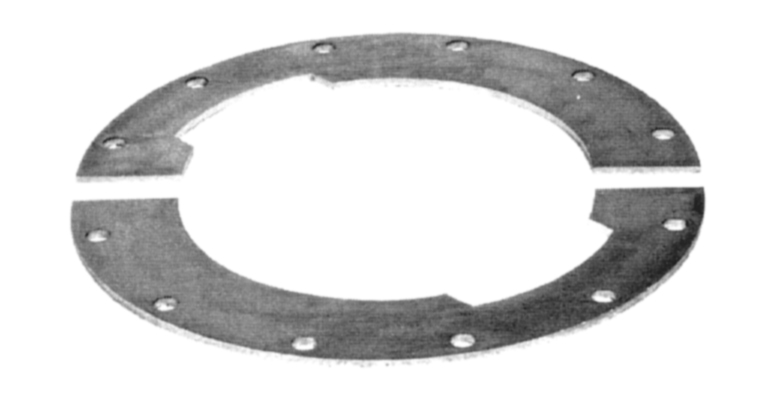

Two half clamp flange plates.

Notes:

  • 0.129" minimum thickness for sizes 5" to 8" diameters.
  • 0.188" minimum thickness for sizes 10" through 36" diameters.
  • 0.275" minimum thickness for sizes 38" through 48" diameters.
  • Model VSI part used for IVSI-1 applications.
  • Order HCB's separately if needed.
