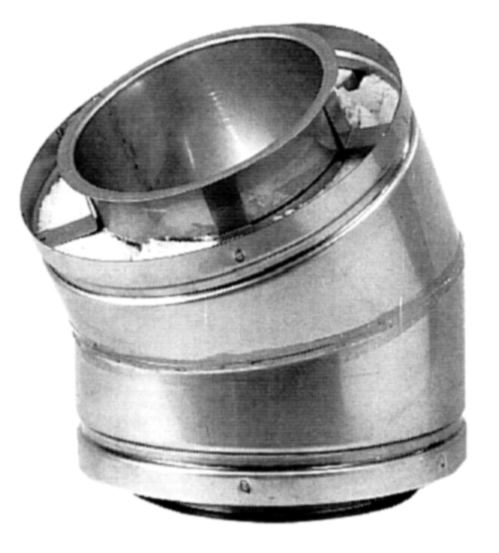

EL30 — 30° Elbow

Assets/Details

Performance Data (63 KB, PDF)
  • Used for a vertical or horizontal direction change of 30°
  • Materials Available: 304/ALZ, 316/ALZ, 304/304, 316/316

Ordered Part Includes:

EL 30, plus one CB and one VB

Notes:
* K = 0.12 Flow Resistance Factor

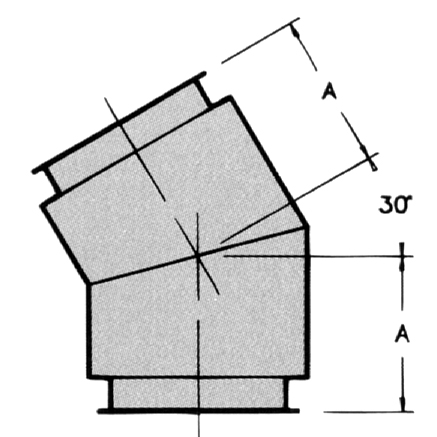

AMPCO_EL 30_11AL

Product Dimensions
O.DPipe I.DIVSIIVSIInches
VSI IVSI-1C2C4ABC
756 1/86 1/822 3/8
8/9656 1/86 1/822 7/8
10866 3/86 3/823 7/8
121086 11/166 11/1624 7/8
141210 5/6 7 5/167 5/1627 1/4
16141287 7/87 7/829 5/8
181614108 1/48 1/430 5/8
201816128 5/88 5/831 5/8
222018149 1/89 1/834 1/8
242220169 3/89 3/835
2624221810 1/1610 1/1637 1/2
2826242010 5/610 5/638 1/2
3028262211 11 40 7/8
3230282411 1/411 1/441 7/8
3432302611 7/811 7/844 3/8
36322812 3/1612 3/1645 3/8
38363012 3/412 3/447 3/4
40363213 1/813 1/848 7/8
44423614 14 52 1/2
464214 1/414 1/453 1/8
50484214 3/1614 3/1656 7/16
524815 5/1615 5/1657 1/8
564815 5/1615 5/1657 1/8
