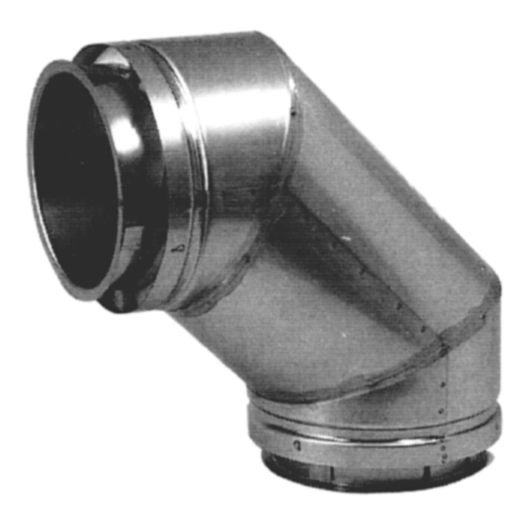

EL90 — 90° Elbow

Assets/Details

Performance Data (63 KB, PDF)
  • Used for a vertical or horizontal direction change of 90°
  • Materials Available: 304/ALZ, 316/ALZ, 304/304, 316/316

Ordered Part Includes:

EL90, plus one CB and one VB

Notes:
1. K = 0.30 Flow ResistanceFactor

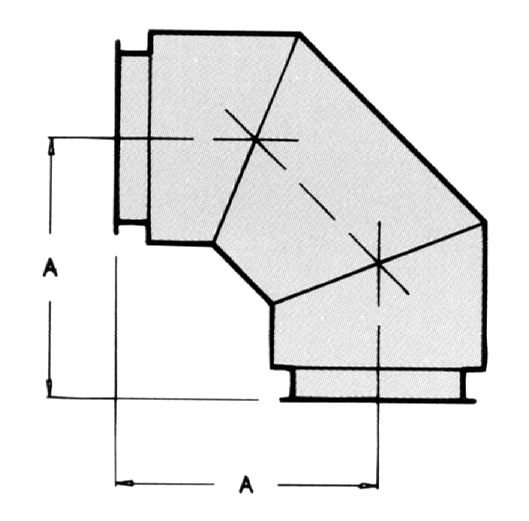

EL90 - 90° Elbow- Dimensional

IVSI Dimensions

Product Dimensions
O.DPipe I.DIVSIIVSIInches
VSI IVSI-1C2C4A
7511 1/2
8/96511 1/2
108612 1/2
1210813 1/2
141210 5/6 14 1/2
161412815 1/2
1816141016 1/2
2018161217 1/2
2220181418 1/2
2422201619 1/2
2624221820 1/2
2826242021 1/2
3028262222 1/2
3230282423 1/2
3432302624 1/2
36322825 1/2
38363026 1/2
40363227 1/2
44423629 1/2
464230 1/2
50484232 1/2
524833 1/2
564835 1/2

ZClear Dimensions

Product (Pipe I.D)Dimensions (Inches)
IVSI-Z3IVSI-Z4O.DA
51113 1/2
61213 1/2
51314 1/2
861414 1/2
1081615 1/2
12101816 1/2
14122017 1/2
16142218 1/2
18162419 1/2
20182620 1/2
22202821 1/2
24223022 1/2
26243223 1/2
28263424 1/2
30283625 1/2
32303826 1/2
324027 1/2
364228 1/2
364429 1/2
