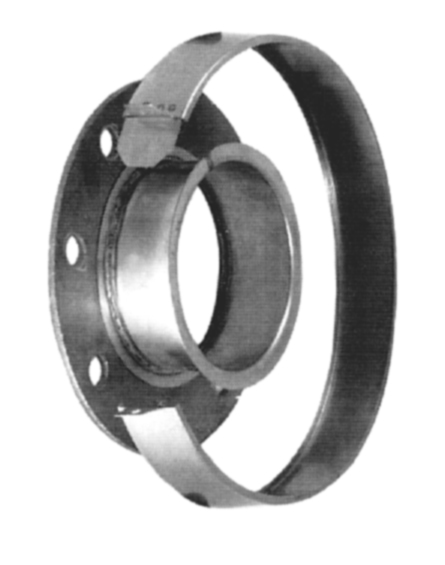

FD — Flange Adapter

Assets/Details

Performance Data (63 KB, PDF)
  • Provides a rigid connection to a 125 lb. or 150 lb ANSI flange.
  • Materials Available: 316/ALZ, 316/316

Ordered Part Includes:

Flange welded to TS, one special CB, and one VB. Fiber insulation provided for IVSI models.

ProductDimensions (inches)
Pipe I.D.No. of BoltsBolt Hole Dia.Flange O.DBolt Circle
58 7/8108 1/2
68 7/8119 1/2
88 7/813 1/211 3/4
10121 1614 1/4
12121 1917
14121 1/82118 3/4
16161 1/823 1/221 1/4
18161 1/42522 3/4
20201 1/427 1/225
22201 3/829 1/227 1/4
24201 3/832 29 1/2
28281 3/836 1/234
30281 3/838 1/236
32281 5/841 3/438 1/2
36321 5/846 42 3/4
42361 5/853 49 1/2
48441 5/859 1/256
