JY — 90° WYE

Assets/Details

Performance Data (63 KB, PDF)
  • Provides low pressure drop for joining appliances in the horizontal and vertical position
  • Materials Available: 304/ALZ, 316/ALZ, 304/304, 316/316

Ordered Part Includes:

JY, plus two VB's and one CB

Notes:
1. All openings are the same diameter
2. Can be used with TCN to provide a single clean out toward each 90° direction change
3. Use OT or OS as needed for smaller branch connections.

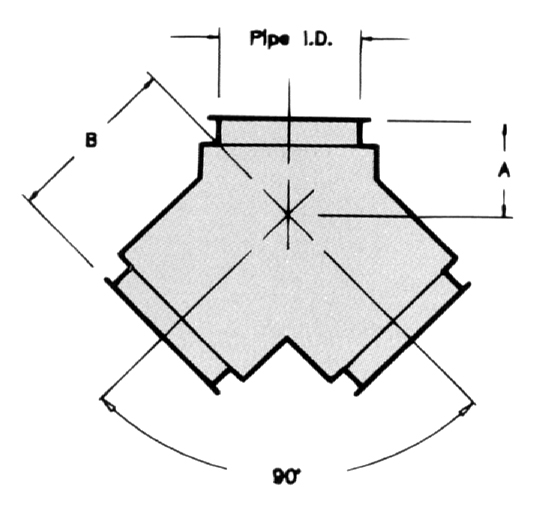

JY - 90° WYE-Dimensional

VSI/IVSI-C1 Dimensions

Product Dimensions
O.DPipe I.DIVSIIVSIInches
VSI IVSI-1C2C4AB
754 5/89
8/9654 5/89
10865 1/1610
121085 11
14121065 1/2 12
16141285 7/813
181614106 3/8 14
201816126 3/8 15
222018147 1/8 17
242220168 19
262422188 19
282624208 3/4 22
302826228 3/4 22
323028249 5/8 24
343230269 5/8 24
36322810 1/2 27
38363010 1/2 27
40363211 3/4 31
44423611 3/4 31
464213 34
50484213 34
524814 1/438
564814 1/438

ZClear Dimensions

Product (Pipe !.D)Dimensions (Inches)
Inches
IVSI-Z3IVSI-Z4(O.D.)AB
5115 11
6125 11
5135 1/2 12
86145 1/2 12
108165 7/813
1210186 3/8 14
1412206 3/8 15
1614227 1/8 17
181624819
201826819
2220288 3/4 22
2422308 3/4 22
2624329 5/8 24
2826349 5/8 24
30283610 1/2 27
32303810 1/2 27
324011 3/4 31
364211 3/4 31
364411 3/4 31
461334
425013 34
5214 1/438
485614 1/438
