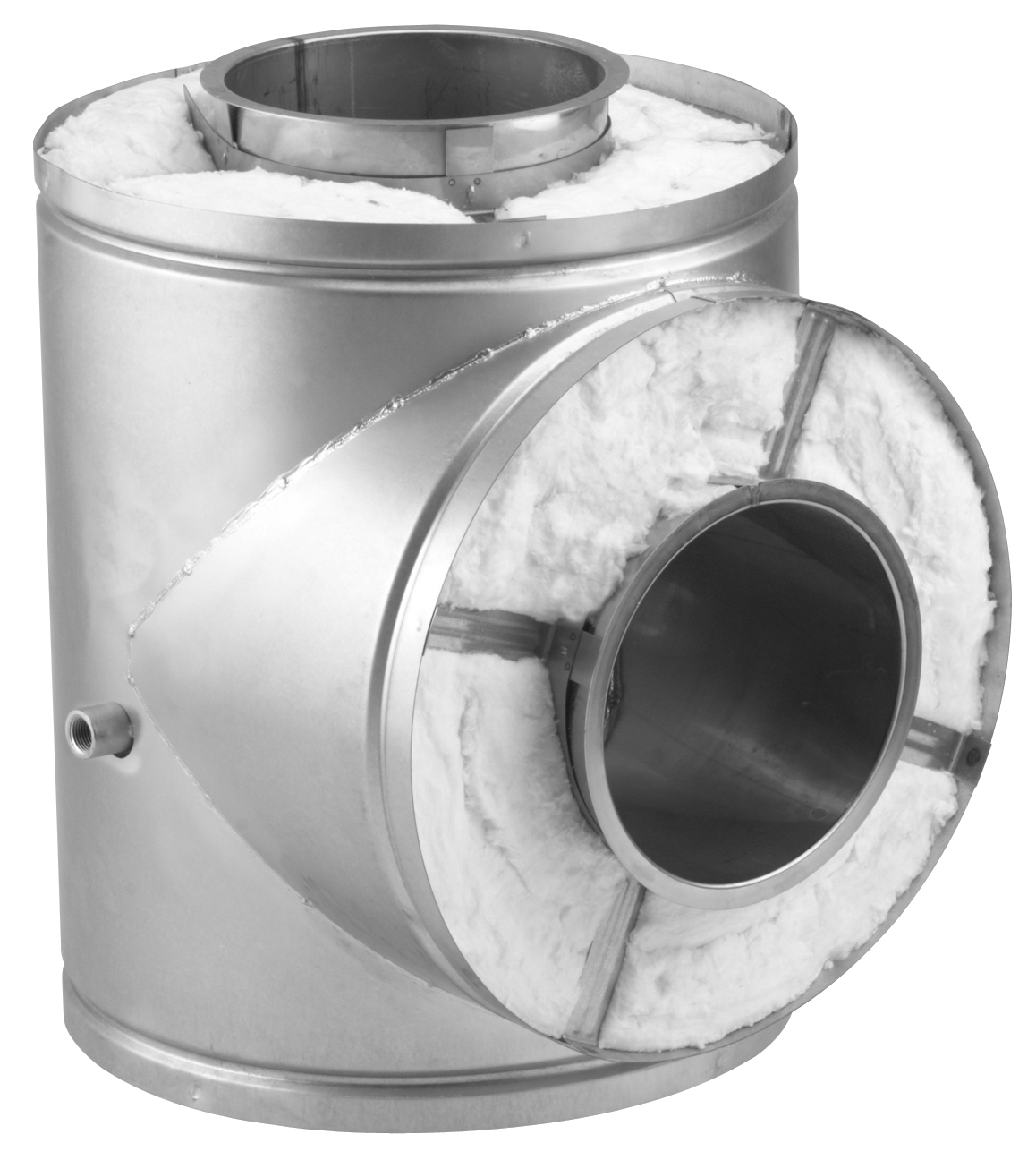

NTS — Nozzle Tee Section

  • Provides access for installation/inspection of sprinkler head
  • 304/Alum, 316/Alum, 304/304, 316/316

Ordered Part Includes:

NTS, plus one VB for the body diameter, one VB for the snout diameter, and one CB for the body diameter.

Notes:

1.  Use TCN or NTAC for access cover
2.  Snout available in any standard diameter equal to or smaller than the body diameter.
3.  For dimension see 90º Manifold Tee
4.  K=1.25 plus an unknown for the sprinkler head. Contact sprinkler head manufacturer.
