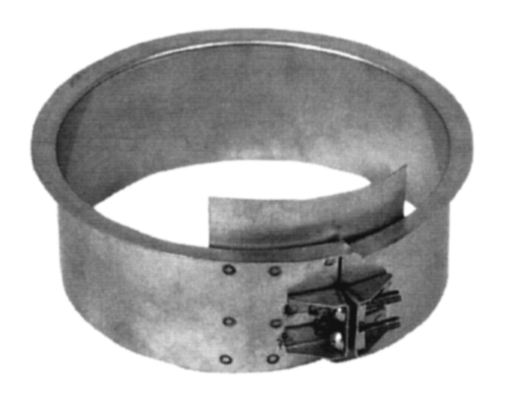

SR — Seal Ring

Assets/Details

Performance Data (63 KB, PDF)
  • Used for non-welded attachment to appliances having an unflanged or collar outlet
  • Materials Available: 304/ALZ, 316/ALZ, 304/304, 316/316
  • Model VSI part used for all IVSI applications.

A = Flange O.D.

  • VSI/IVSI-1 = I.D. + 5"
  • C2 = I.D. + 7"
  • C4 = I.D. + 11"

B = Bolt Hole Circle

  • VSI/IVSI-1 = I.D. + 4"
  • C2 = I.D. + 6"
  • C4 = I.D. + 10"

C = Flange I.D.

  • VSI/IVSI-1 = I.D. + 1/2"
  • C2, C4 =

Ordered Part Includes:

SR, plus one VB, one CB, and hardware.
