The Four Easy Steps to Joint Assembly
For all AMPCO pipe and fittings, the flange-to-flange inner pipe joints are identical for each pipe inside diameter.
Temperature of gases carried in the system determines the proper sealant used.*
As shown in the adjoining illustration and photos, assembly is accomplished in four easy steps, using only standard tools.
*See Grease Duct, Boiler Stack, or Engine Exhaust instructions for correct sealant usage.

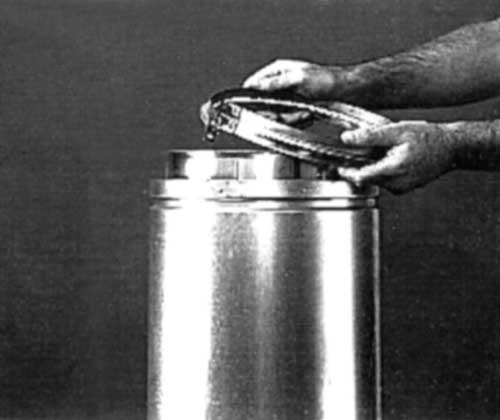

Step 2: Position Inner VB below flange of pipe or fitting.

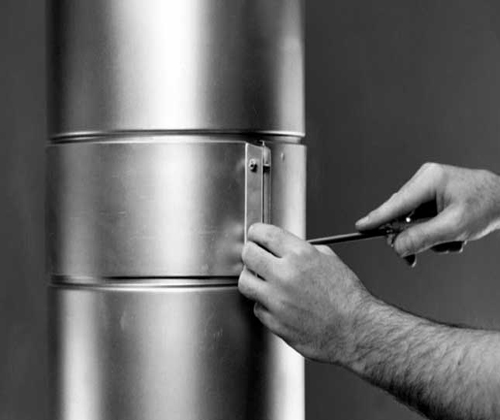

Step 4: Position Outer Channel Band around outer casing. Align with pipe grooves and tighten.

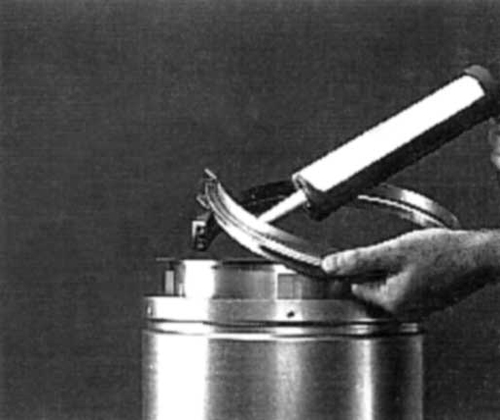

Step 1: Fill Inner Vee Band (VB) with proper sealant.

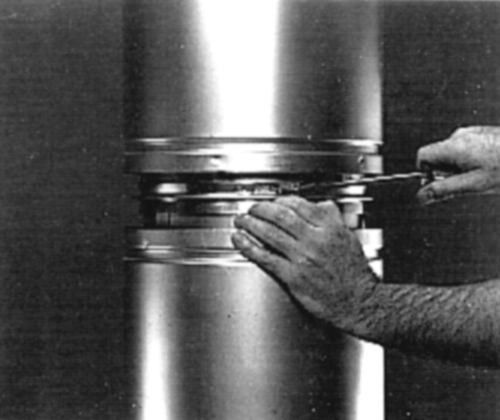

Step 3: Mate flanges of two pipes. Position Inner VB over both flanges and tighten.
