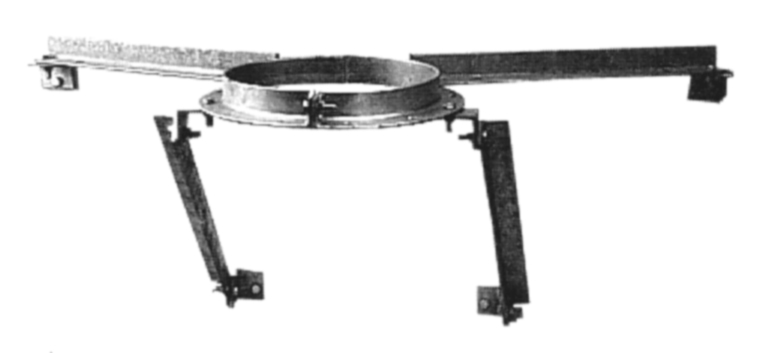

WG — Wall Guide Assembly

WG — Wall Guide Assembly

Assets/Details

AMPCO Installation Guide (2 MB, PDF)
Performance Data (63 KB, PDF)
  • Same use as FR, but with factory-supplied bracing.
  • Materials Available: Painted Steel

Ordered Part Includes:

One FR, four struts, and six brackets.

VSI-IVSI Notes:

1. Assembly will maintain a 4" to 10" clearance between pipe O.D. and supporting structure.
2. Model VSI part used for IVSI-1 applications.
