GMT — 90° Grease Duct Tee
GMT — 90° Grease Duct Tee
Assets/Details
Performance Data — Ampco Technical Data (63 KB, PDF)
- Part MT with dam added for protection against fluids running out while cleaning
- Used at 90 deg. turns onl
- Materials Available: 304/ALZ, 316/ALZ, 304/304, 316/316

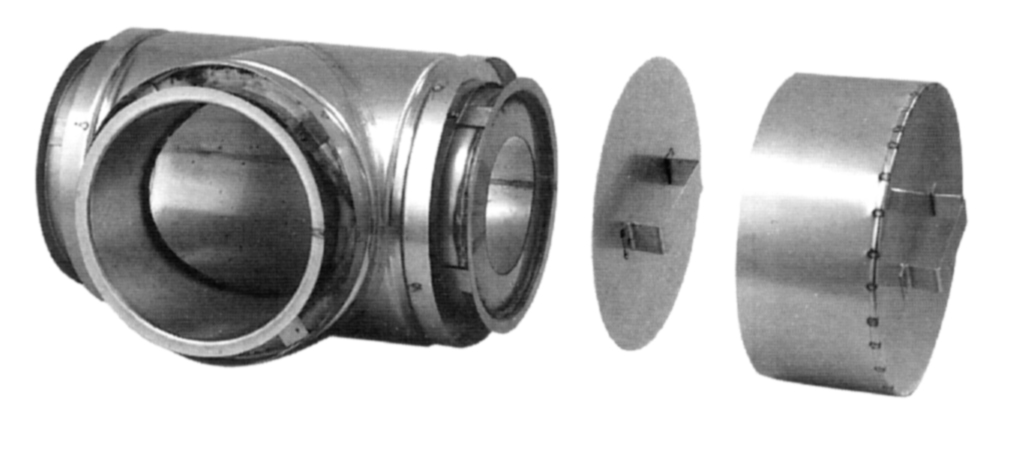

Ordered Part Includes:
GMT, plus one TCN, two VB's and one CB.
Notes:
K=1.25 Flow Resistance Factor

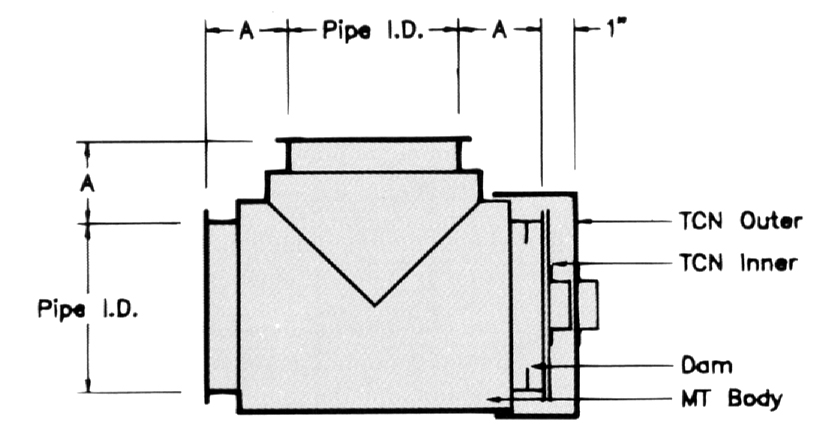

VSI/IVSI-C1 Dimension A
| VSI/IVSI-C1 | IVSI-C2 | IVSI-C4 |
|---|---|---|
| 4" | 5" | 7" |
ZClear Dimension A
| IVSI-Z3 | IVSI-Z4 |
|---|---|
| 6" | 7" |
